Commercial Refrigerators - Populus Series

Description

Populus series consists of Refrigerated Counters (Chef’s Bases), specifically designed for the placement of mass catering grilling equipment on top. The main features of the Refrigerated Counters from INOMAK are their ergonomics and the robustness of their construction.

There are 2 variations for Populus series:

The refrigerated counters chef’s bases series, which stands out for its ergonomic height

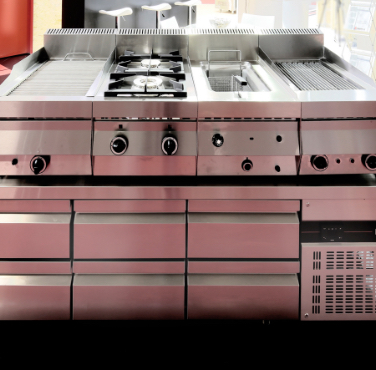

The refrigerated counters chef’s bases (step 40), which stands out for its ergonomic height and especially its length, offering perfect placement of mass catering grilling equipment for optimal organization and space utilization in your kitchen!

Advantages:

Space Efficiency: They provide a sturdy, organized surface for placing essential cooking equipment, saving space in the kitchen.

Accessibility: They keep the equipment within easy reach, improving workflow and reducing movement time within the kitchen.

Ergonomics: They reduce the need for stretching, enhancing comfort and efficiency during long hours of work.

Safety: By placing the equipment on a stable base, the risk of accidents is reduced, ensuring that your equipment is safely positioned.

Products in Populus series are certified for their Energy Efficiency Class, in accordance with European legislation.

Features

Energy Classification under EU directives
With natural refrigerant R290 (Zero ODP/GWP=3)
1 shelf per door
Hygenically designed interior
Material AISI 304 18/8-10
Self – closing door at 90°
Evaporator protection against corrosion
Forced air circulation technology
Clip-on guides for fast & easy cleaning
Embedded controller for easy operation and cleaning
Removable magnetic door gasket
2 year warranty on mechanical and electrical parts
Over extension telescopic slides on drawers
Automatic evaporation of condensate water
Injected polyurethane foam insulation, density 42 kg/m³, HFC Free (Zero ODP, Low GWP)
Automatic Defrost
Height adjustable stainless-steel legs
GN 1/1 Internal dimentions
2 alternative drawer arrangements available (2xGN 1/3, 1xGN 2/3)
Designed with ergonomic height and length for the placement of grilling machines
Ambient temperature +43oC

Special Features

Material AISI 304 18/8-10
New style Condenser with low maintenance requirements
Drawer Slides NEW

Options

Doors
Wheels
Wifi
Choice of Colours (RAL Palette)
Without refrigeration mechanism (Ramnus Series – Remote Unit)
With refrigeration mechanism on the left side
With an upstand
Without worktop
With worktop 80cm deep
Drawer slides with soft close
2nd evaporator models with dimensions 240cm
Reccomended for heavy duty & especially for products with many drawers.

Specs Table

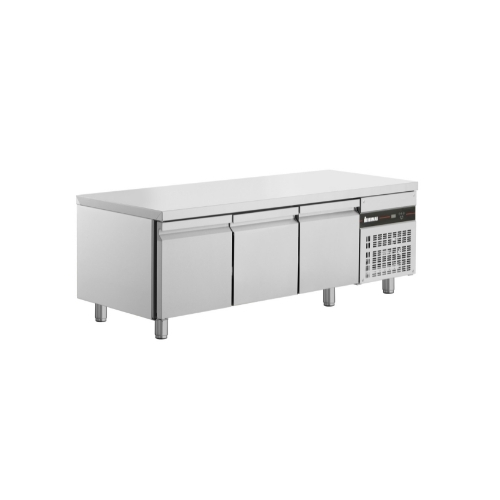

Base Model		PWDP77	PWDP777	PWDP7777
Capacity	lt	126	250	335
Dimensions	mm	1342x700x643	1792x700x643	2242x700x643
Weight	kg Gross / Net	104/90	135/118	166/146
Packaged volume	m3	0,75	0,95	1,19
Shelves	pcs	2	3	4
Operating Temperature	°C	0 / +10	0 / +10	0 / +10
Rated Voltage	V/Hz	230 / 50	230 / 50	230 / 50
Electrical power	W	344,2	344,2	447,2
Energy class		B	B	C
Climate class		4	4	4
Refrigerant		R290	R290	R290

Refrigerated Counter Chef’s Bases (step 40)	PWDP33/40	PWDP333/40	PWDP3333/40
Drawers	4 Drawers GN 1/3	6 Drawers GN 1/3	8 Drawers GN 1/3
Capacity (lt)	164	250	335
Dimensions (mm)	1602 X 700 X 643	2002 Χ 700 Χ 643	2402 Χ 700 Χ 643
Gross / Net (kg)	109/95	140/123	171/151
Packaged volume (m3)	0,84	1,05	1,27
Shelves (pcs) / Door	1	1	1
Operating Temperature (°C)	0 / +10	0 / +10	0 / +10
Rated Voltage (V/Hz)	230/50	230/50	230/50
Electrical power (W)	344	344	447
Energy class	B	B	C
Climate class	4	4	4
Refrigerant	R290	R290	R290
